Best Practices for Designing for Metal Laser Cutting

Laser cutting is a precise and efficient method for crafting intricate designs in metal. Whether you’re working with aluminum, stainless steel, or carbon steel, adhering to these advanced best practices will ensure flawless cuts and optimal performance. Here are key technical considerations for metal laser cutting:

Precision and craftsmanship meet as this 20-gauge carbon steel design comes to life.

1. Material Selection and Thickness

Laser cutting material examples from bottom to top (Stainless Steel, Carbon Steel, Brass, Acrylic Opaque, Acrylic Translucent, Veneer Plywood). Not pictured - Aluminum and additional Signage Materials.

The success of your project starts with selecting the appropriate metal and thickness:

• Aluminum: Lightweight and corrosion-resistant, ideal for aerospace and decorative applications.

• Stainless Steel: Durable and aesthetically pleasing, perfect for structural and decorative use.

• Carbon Steel: Cost-effective and versatile, suited for industrial parts.

Design Tip: Consult your provider to verify material compatibility and ensure thickness aligns with cutting machine capabilities.

2. Design Guidelines for Cut Materials

When designing for metal laser cutting, maintaining proper distances and adhering to minimum feature sizes ensures both structural integrity and cutting precision. These adjusted guidelines will help you achieve reliable results across various sheet cutting methods.

Design guidelines for metal laser cutting - best practices

Distance Between Features

To ensure the integrity of your cut, maintain appropriate distances between features. Following these recommendations will yield consistent results regardless of the cutting process used:

• Minimum Hole to Edge Distance: Maintain at least 2x the material thickness (MT) or 0.125 inches, whichever is larger.

• Minimum Hole to Hole Distance: Keep a distance of 6x MT or 0.125 inches, whichever is larger.

• Minimum Relief Cuts: Ensure at least 0.010 inches or 1x MT, whichever is greater.

• Minimum Corner Fillets: Add fillets of at least 0.5x MT or 0.125 inches, whichever is larger.

• Minimum Tab Thickness: Tabs should be at least 0.063 inches or 1x MT, whichever is greater.

• Minimum Slot Thickness: Design slots to be at least 0.040 inches or 1x MT, whichever is greater.

Minimum Detail Sizes

Before cutting a feature, the cutting tool (e.g., laser beam, waterjet stream) must pierce the material at the starting point. Proper sizing of holes and internal shapes ensures accurate results:

• Design details to be at least 1x of the material thickness or larger.

• Account for kerf width—features smaller than the kerf width may be distorted or lost during cutting.

Tip: Oversize critical features slightly to compensate for material removed by the kerf (Ex: clearance holes for bolts should be larger than the nominal size of the bolt.)

Pro Tip: Relief cuts also account for kerf width and prevent material distortion during assembly.

3. Kerf Compensation and Fit Tolerances

The black line in this image represents a precise cut feature—an opening in a stainless steel enclosure designed to house a touchscreen HMI. To ensure the feature is cut accurately to tolerance, we apply a technique called kerf compensation. This process adjusts the laser's path, shifting it slightly inward for internal cuts and outward for external cuts. By accounting for the material removed during cutting, kerf compensation ensures the final dimensions are exact, preventing the feature from being undersized or oversized. This meticulous adjustment guarantees a perfect fit for the touchscreen HMI and maintains the integrity of the overall design.

What is Kerf Compensation?

Kerf compensation adjusts the laser’s cutting path to account for the material removed by the laser beam (known as the kerf). Here's how it works:

• Internal Cuts: The laser's path is moved slightly inward to ensure openings are not oversized.

• External Cuts: The laser’s path is moved outward to avoid undersized features.

By compensating for the kerf, this adjustment ensures that the final dimensions of the cut match the design specifications, allowing the touchscreen HMI to fit perfectly within the enclosure.

Why is Kerf Compensation Important?

Without kerf compensation, the cut features could deviate from the intended design, resulting in parts that are either too tight or too loose to function properly. This technique guarantees:

• Accurate fit for components like screens, fasteners, or panels.

• Enhanced functionality and reliability of the final assembly.

• Reduced need for post-processing adjustments.

Kerf compensation is one of the many precision-focused techniques we utilize at Form(X) to deliver flawless laser-cut components for your most critical projects. Let us help bring your designs to life with accuracy and reliability.

4. Maintain Structural Integrity

Laser cut railing panel - woodland scene

Designs with thin sections or densely packed cuts can lead to warping or breakage:

• Keep section widths at least 2x the material thickness.

• Use cross-bracing in open designs to enhance stability.

Testing Strategy: Use smaller test pieces to evaluate structural soundness before full-scale production.

5. Edge Quality and Heat Affected Zones (HAZ)

The blue line indicates the path of the laser. The loop at the top of the path is the ring cut. This is ideal for outside corners to allow the laser to continue moving and not add excess heat in a stop and go motion that a hard 90 degree would produce. When designing outside corners, there is no need to produce any extra geometry. Our laser control software will allow for ring cuts to ensure nice sharp clean corners.

Laser cutting produces high-quality edges, but heat can affect material properties:

• Minimize heat input by using efficient cut paths and avoiding excessive re-cuts.

• Space adjacent cuts to reduce localized overheating.

• For external corners, sharp corners can be used as they don’t create significant heat buildup. A ring cut approach can maintain smooth laser motion if needed.

Pro Tip: For critical applications, request post-processing options like deburring or polishing to refine edges.

6. Proper Spacing Between Features

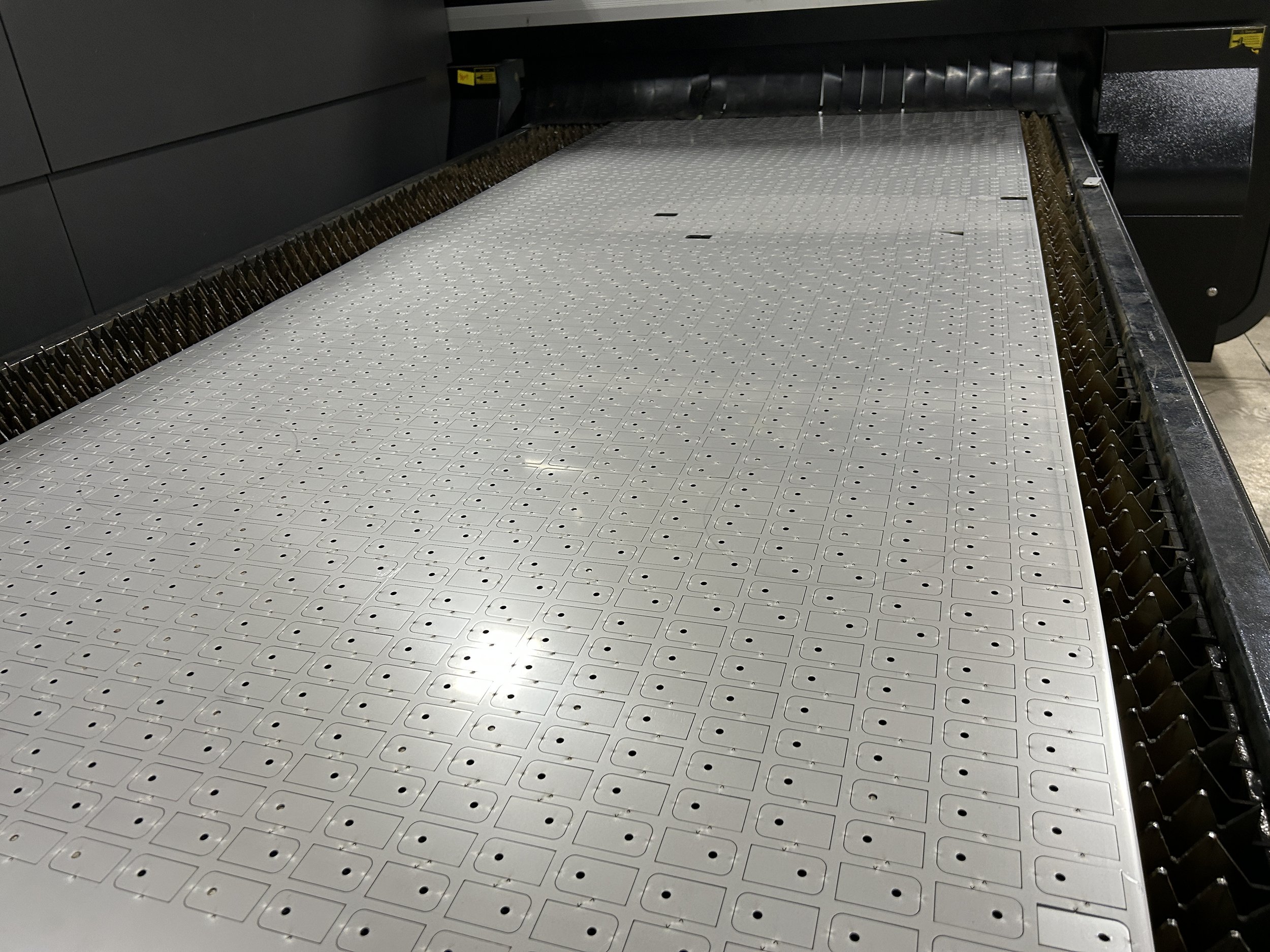

Small parts nested on 3/16” 304 stainless steel to optimize cut quality

Inadequate spacing can lead to defects such as distortion or fusion:

• Maintain a minimum spacing of 1x the material thickness between cut lines.

• For highly detailed designs, increase spacing to account for thermal expansion.

Guideline: Optimize layouts to maximize material usage while ensuring safe spacing.

7. Etching and Marking for Assembly

Engraving lasers offer the ability to add decorative art, part numbers, or logos to metal or powder coated surfaces.

Etching is a critical step in ensuring precision and ease of assembly for projects with multiple components. By incorporating features like part numbers, alignment guides, or bend lines, you can streamline assembly processes while maintaining design integrity. For decorative elements, use high-quality vector graphics to achieve crisp, professional results. Always ensure markings are clear but shallow to preserve functionality and aesthetics.

Pro Tip: Opt to place etching on hidden or non-critical surfaces unless the etching serves a decorative or informational purpose, such as a logo. Thoughtful etching enhances both the practicality and visual appeal of your finished product, ensuring it meets the highest standards.

Closing Remarks

Laser cut railing panels, posts, and brackets all powder coated and assembled.

By incorporating these advanced design practices, you can achieve superior results in metal laser cutting, ensuring both aesthetic and functional success. Ready to bring your precise designs to life? Contact Form(X) today for expert metal laser cutting services tailored to your needs.
